For the first time, Phoenix Contact's QUINT4 power supply is offering superior system availability in the power range up to 100W in a very small size.
Preventative function monitoring and exceptional power reserves are now also available for applications in the low-power range.
The dynamic boost can be used to supply up to 200% of the nominal current for 5sec to start up heavy loads.
For 1.3 A and 2.5 A devices, a static boost that continuously provides up to 125% of the nominal current is also available to easily extend the system. The preventive function monitoring provides early warning for system-specific, critical operating states before faults occur.
Selectable power thresholds or DC OK signaling enable output parameter monitoring that is adapted to the application.
Long service life
All Quint Power power supplies under 100W have a high efficiency of up to 93.7% and a long service life, with low power dissipation and low heating.
The slim and flat design with a depth of 90mm makes these devices especially space-saving, even enabling them to fit in smaller control boxes.

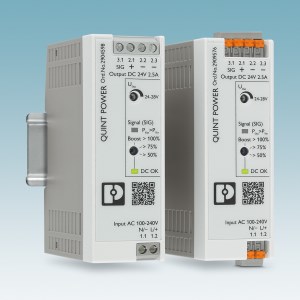

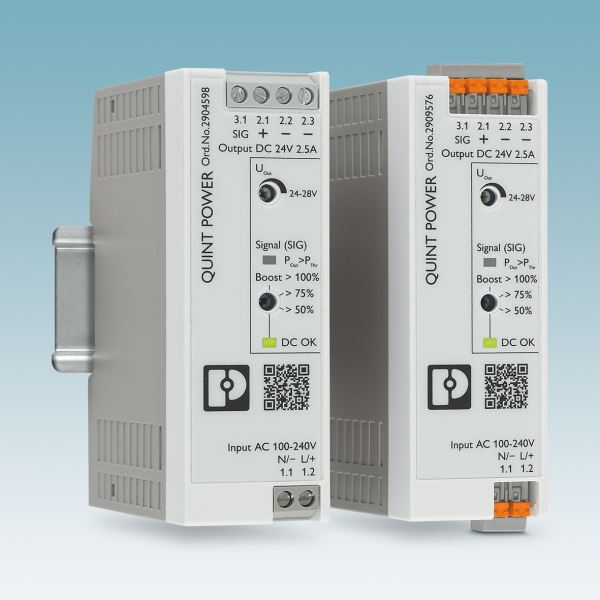

These small Quint Power power supplies are available in three performance classes (24 V DC output voltage with 1.3 A, 2.5 A and 3.8 A) with either Push-in or screw connection.
In addition to a wide AC input range of 85 V AC to 264 V AC, their wide DC input voltage range of 88 V DC to 350 V DC and wide temperature range of -40°C to +70°C ensure a high degree of implementation flexibility.
Main advantages include:
· Startup of heavy loads
· Preventive function monitoring report
· High efficiency and long service life
· Low power dissipation and low heating
· Space savings in control cabinet
· Narrow, slim-line design
· Free selection between push-in and screw connection
