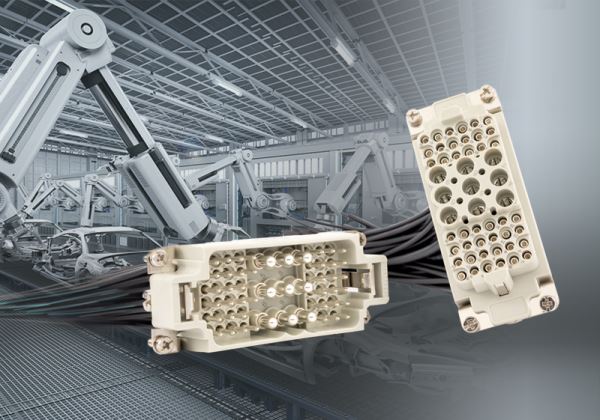

The ILME CX series of combined inserts has been enriched with the new-born CX 9/42, an all-in-one solution combining power and signal connections.
CX 9/42 inserts set a new standard in the design of rectangular connectors, a combination of 9 power and 42 auxiliary signal contacts.
This space-saving solution is especially designed for robotics applications in the automotive environment. It is aimed at reducing maintenance time and parts costs, unifying in a single connector, power lines together with sensitive auxiliary signals.
Suitable for removable contacts, the CX series is available up to size 6.0 (6 mm2/AWG 10) and CD series up to size 2.5 (2,5 mm2/AWG 14). The 40 A power contacts are placed in the central part of the insert covering the wiring of up to three main 3-phase motors, while on the sides of the connector the 10 A auxiliary contacts can accommodate additional mid-power motors, control and signal connection demands.
For further technical details contact:
Treotham Automation Pty Ltd
1300 65 75 64
