Epson is expanding its lineup of SCARA (selective compliance assembly robot arm) robots with the launch of its new T series.
The T series of robots will offer a low total cost of ownership (TCO).

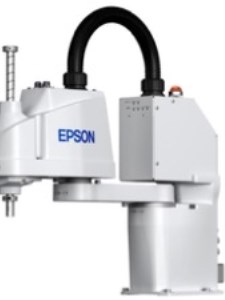

The T3, the first product in the T series, will be released in limited markets this month, with a gradual rollout in other regions to follow.
The T3 is designed primarily for simple material handling applications, such as test machine loading/ unloading. It offers quicker setup and lower running costs.
Epson says companies deploying the new robots will be able to free operators from repetitive and non-creative tasks such as transporting components. With the T series these tasks are now more affordable.
Manufacturers who automate tasks by combining multiple low-cost single-axis robots will find that they can replace these with T3 robots. Doing so will enable them to reduce or eliminate troublesome single-axis robot maintenance work and save money over the long run.
Deploying T3 robots will enable factory owners to free up space that was taken up by a large number of robots and use their floor space more efficiently and productively.
Reputation for speed and precision
Epson’s existing lineup of 3kg payload industrial SCARA robots includes the G3 series, RS3 series, and LS3 series. G3 series robots have an established reputation for speed, precision, and low vibration. RS3 series robots are mounted overhead and thus use the work envelope with maximum efficiency. LS3 series robots offer high performance at a low cost.
The addition of the T3 series, which offers simple setup and outstanding usability, gives Epson an even stronger lineup that meets a wider range of needs.
Features include:
- A built-in controller saves space and simplifies robot setup and redeployment.
Epson was able to integrate all the controller components into the robot arm meaning that customers do not need a controller box.
- A battery-less motor unit reduces maintenance and factory downtime.
Factory owners do not need to exchange batteries because the T3 is able to record the back-up status of its motors by using a simple mechanical system with the latest motor technologies.
- An end-effector I/O port and a short, stable cable conduit simplify cabling work.
Epson has provided an I/O communications port closer to the end-effector. This port makes it easier to connect cables to the end-effector and supply power to it. There is no longer any need to route a long cable to the controller. The cable conduit, which contains pneumatic hoses as well as electrical cables, is shorter than in previous models. The shorter design gives it stability while the robot is moving, making it easier to route cables outside the conduit. - Runs on a low supply voltage (AC100V), using 30% less power than comparable Epson robot systems (LS3 SCARA robot and RC90 controller).
The T3 has 30% better energy performance (power consumption: 0.66 kVA) than conventional SCARA robots, therefore helping factory owners reduce long-term running costs.
The T3 also runs on a single-phase alternating current at input voltages ranging from 100V to 240V, meaning that it can also be used in facilities where a large power supply is not available.
For more information: http://global.epson.com/innovation/core_technology/robotics.html
In Australia Epson’s robot sales, service and support is managed by Motion Solutions
(03) 9563 0115
Motion Solutions Australia will exhibit the Epson six axis robot C4 with RC 700 controller and the Epson G3-351 with RC180 controller integrated with Vision and Vibratory Feeder at the upcoming National Manufacturing Week at the Melbourne Convention and Exhibition Centre (Stand 2722) from May 9-12.
