Linear robots are the automation tool of choice for machine or press loading, order picking and high-bay warehouse loading or even for transport and handling tasks.
Due to the demands of production for faster, more intelligent and economically profitable solutions, Fibro Läpple Technology has developed a linear robot which fulfils the desire to maximise production performance.
The linear robot is able to get production up and running quickly and reliably.
So, a side-mounted igus energy chain system with pre-harnessed chainflex cables proved to be the optimal solution.

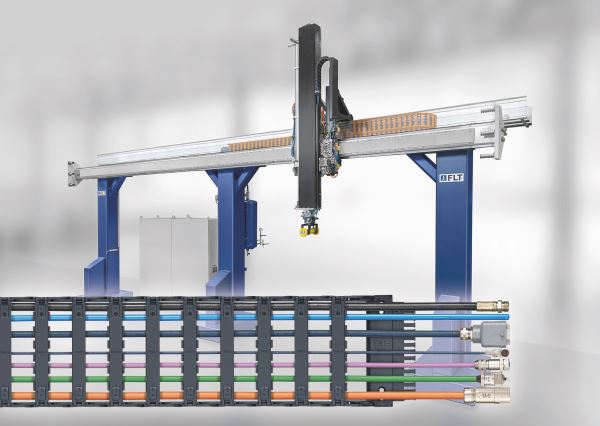

Twice as fast and half as heavy – this is what makes the linear motor robot from Fibro Läpple Technology different from other solutions.
In a new carbon design, the linear motor robot saves up to 50% in weight compared to conventional solutions.
The weight reduction enables twice the speed, accelerations of up to 26m/s2 and twice the positioning accuracy. Instead of a rack and pinion drive, the designers chose a linear motor because it allows very high dynamics.
An unsupported igus energy chain of the E4.1 series ensures a secure energy supply for the z-axis. The integration of a suitable energy chain solution in the compact installation space of the x-axis was a challenge, because a classic gliding or unsupported solution was out of the question due to the high forces.
“Together with igus, we therefore decided on a side-mounted energy chain”, explains Boris Bind, Head of Mechanical Design and Development at Fibro Läpple Technology.
Complete energy supply system directly from a single source
An E4.1 series energy chain is used with additional sliding elements that further reduce wear.
The designers also used the igus range for the cables. They chose pre-harnessed chainflex cables – so-called readycables – that are specifically designed for use in the energy chain.
And, thanks to a large number of tests in the company’s own 3,800 sqm test laboratory, are given a guarantee for 36 months.
The complete system is housed in a special guide trough, which further minimises noise and increases the reliability of the system.
All igus products are available in Australia from Treotham Automation.
